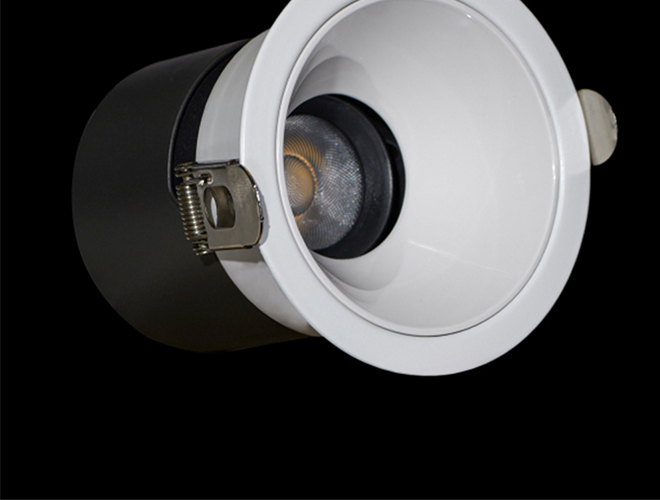

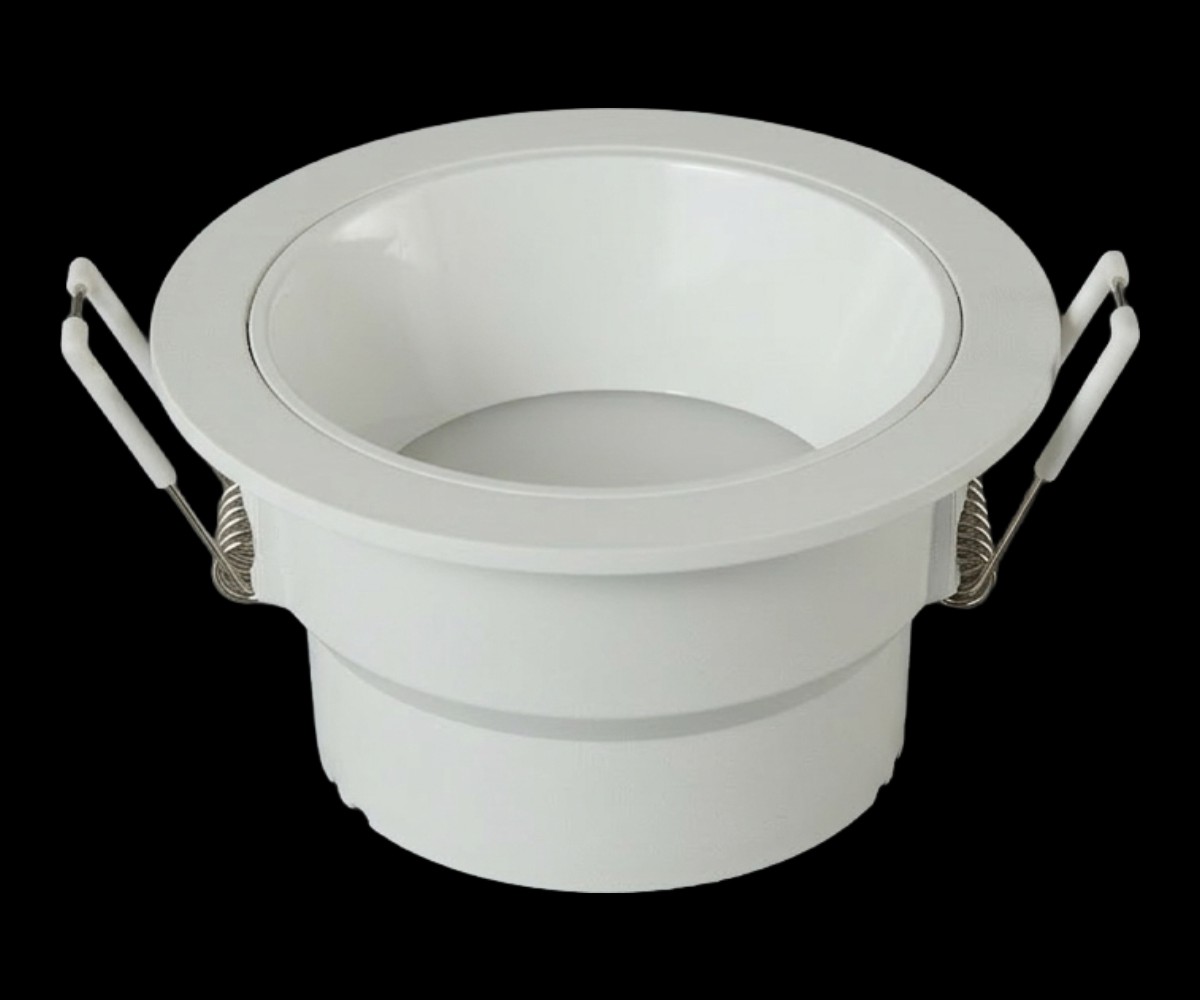

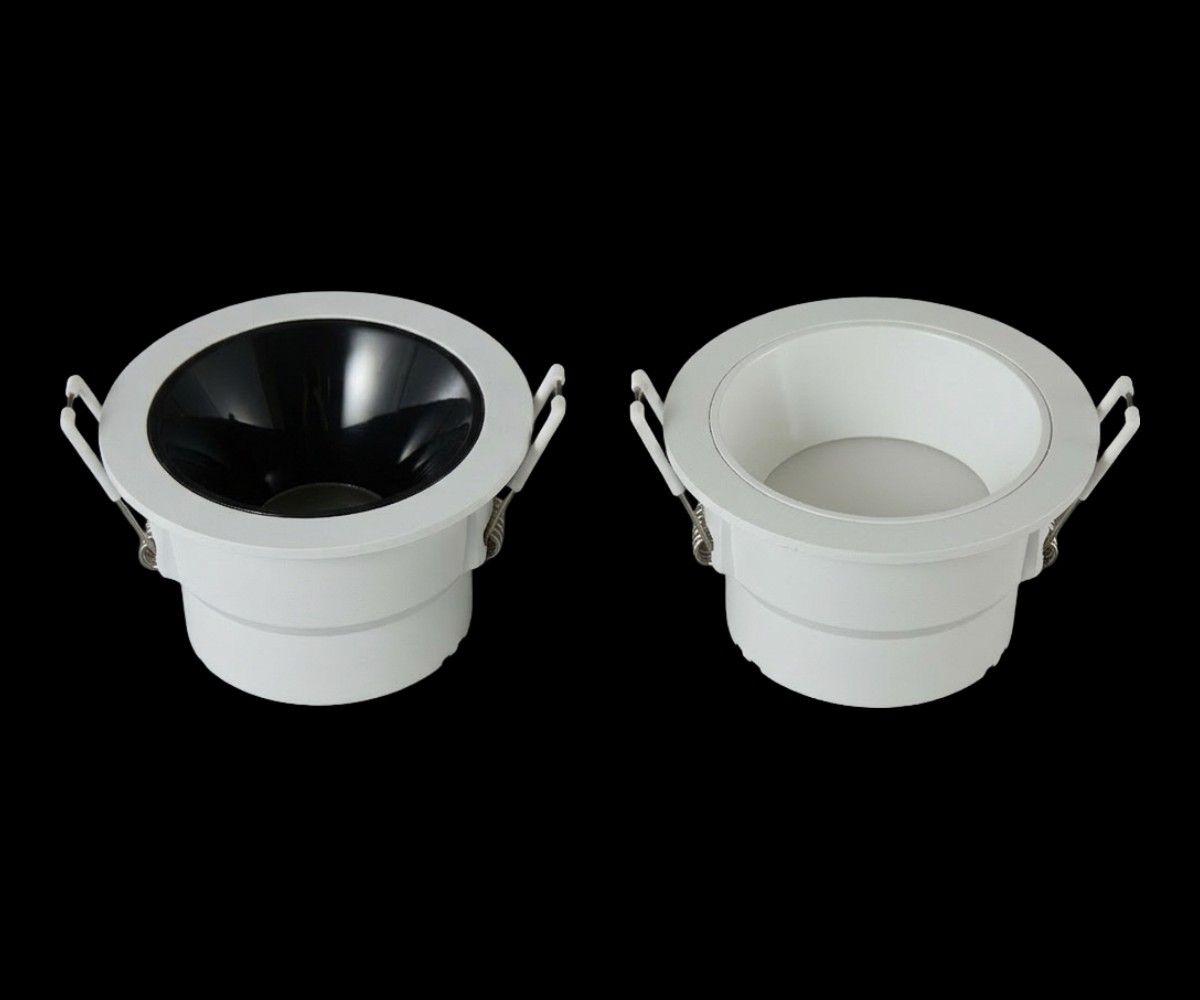

NLED155SD-A

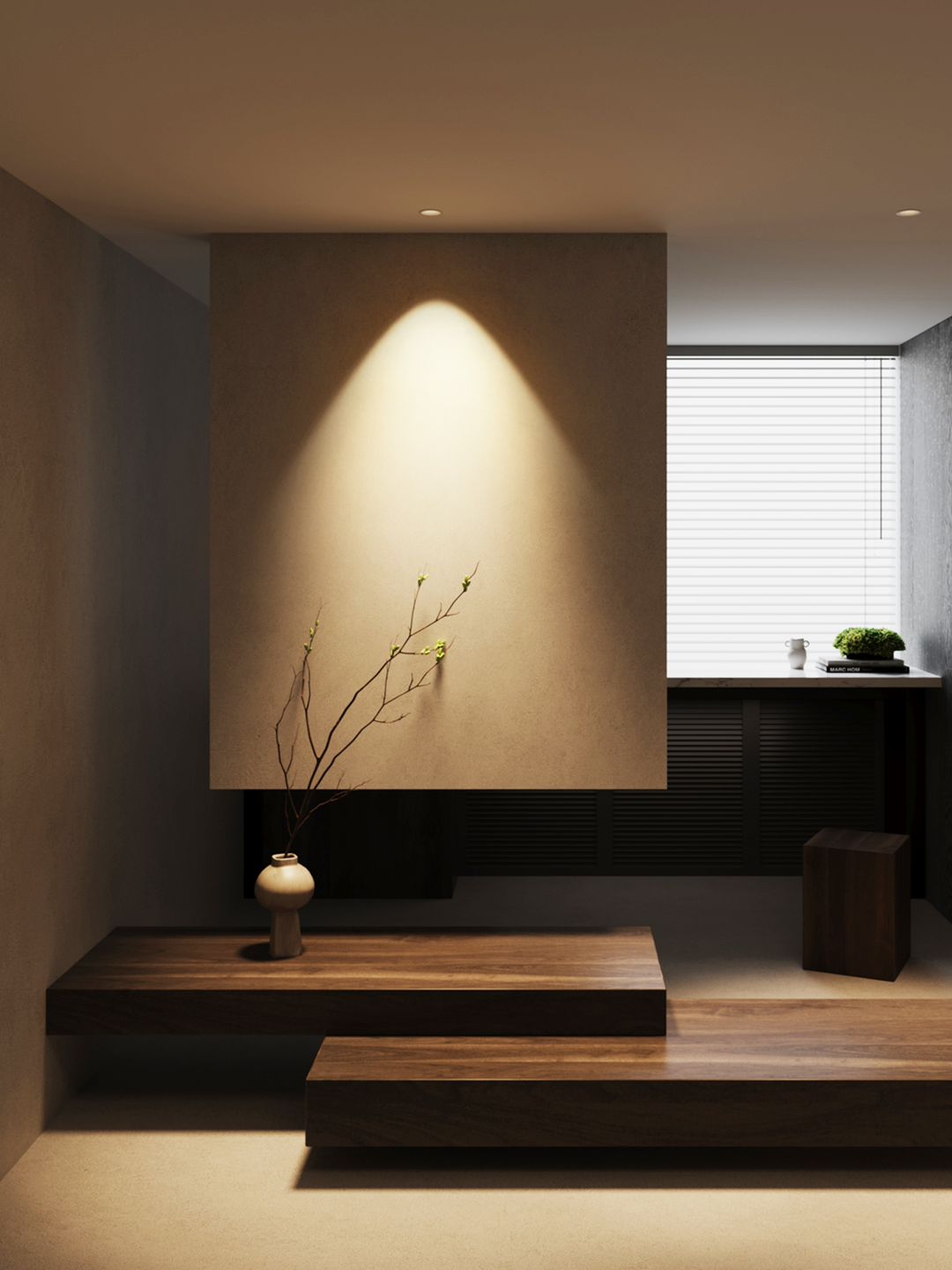

Application
Design Specifications
Power: 5/8/12 W
Input Voltage: AC 200-220 V
Luminous Flux: 250/480/520/720/780 lm
Luminous Efficacy: 50/55/60/65 lm/W
Color Temperature (CCT): 3000K / 4000K / 6500K (Selectable)
Color Rendering Index (CRI): Ra ≥ 90
Beam Angle: 55/60 °
Driver Type: DOB
Housing Material:
· Housing: Thermally Conductive Nylon
· Reflector: PC
· Lens: PC
IP Rating: IP20
Installation: Recessed
Cutout Size: Ø120 mm
Certification: CCC
Performance
Flicker Percentage: < 3.2%
Power Factor: > 0.5

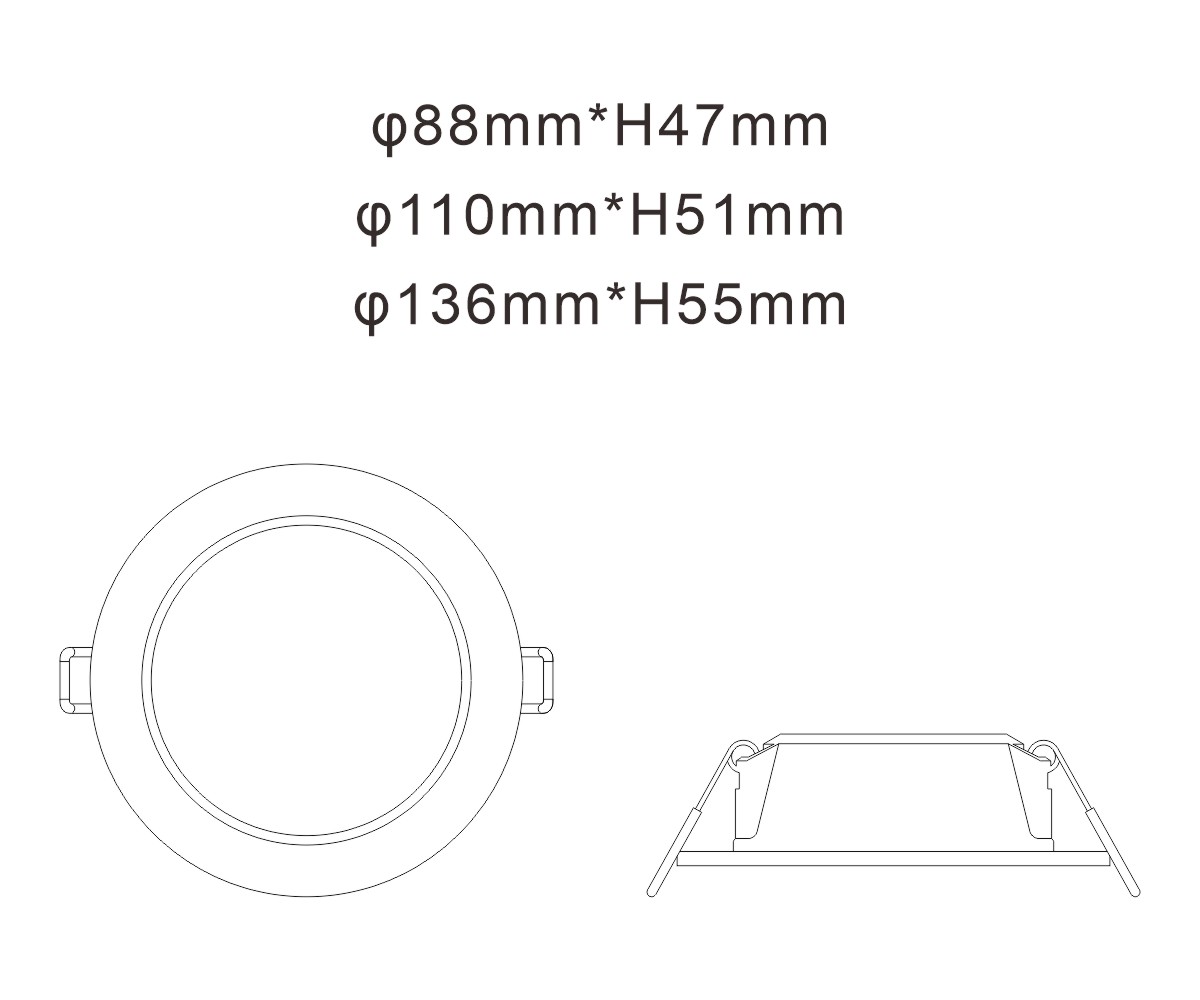

Dimensions - Wiring
