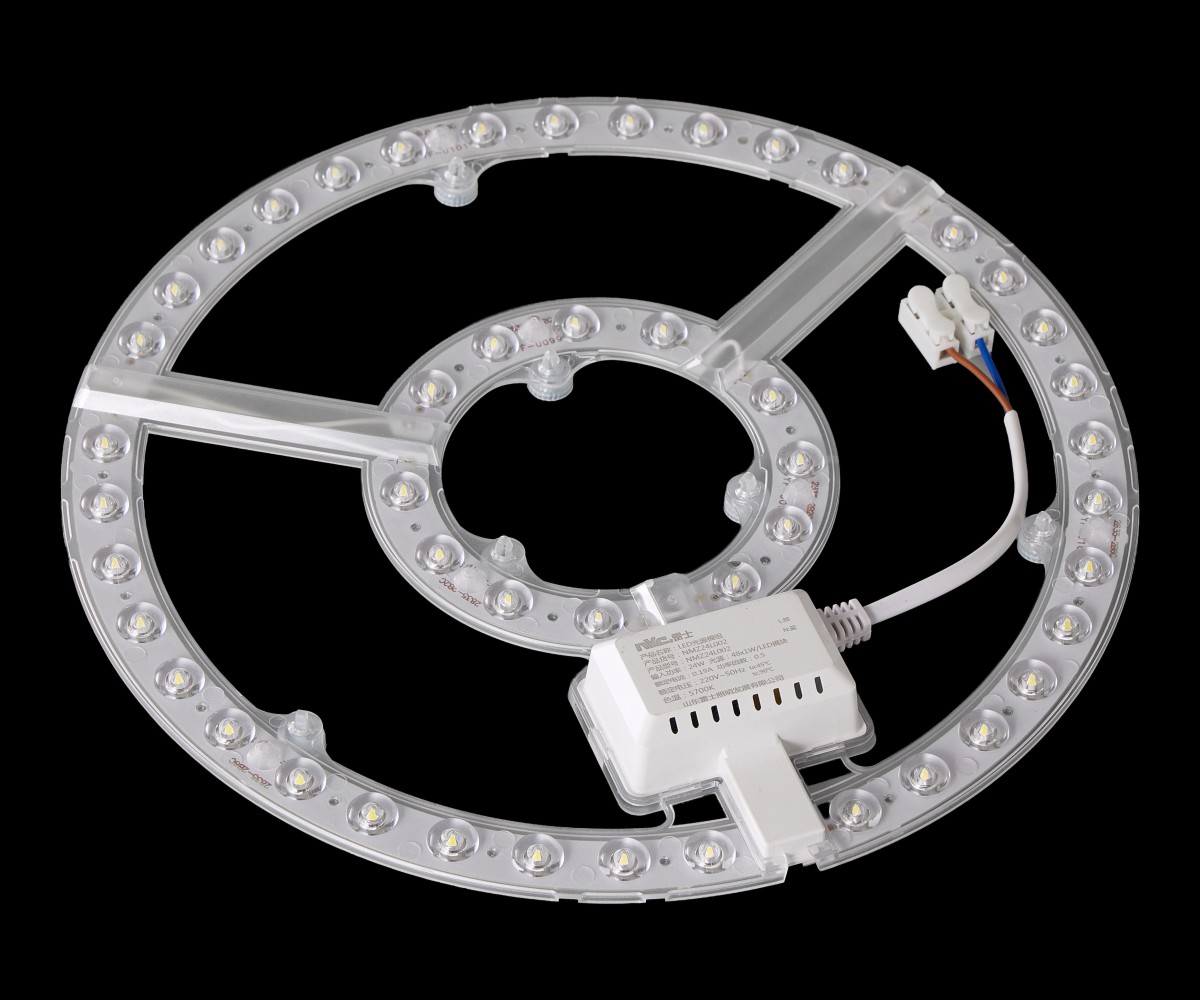

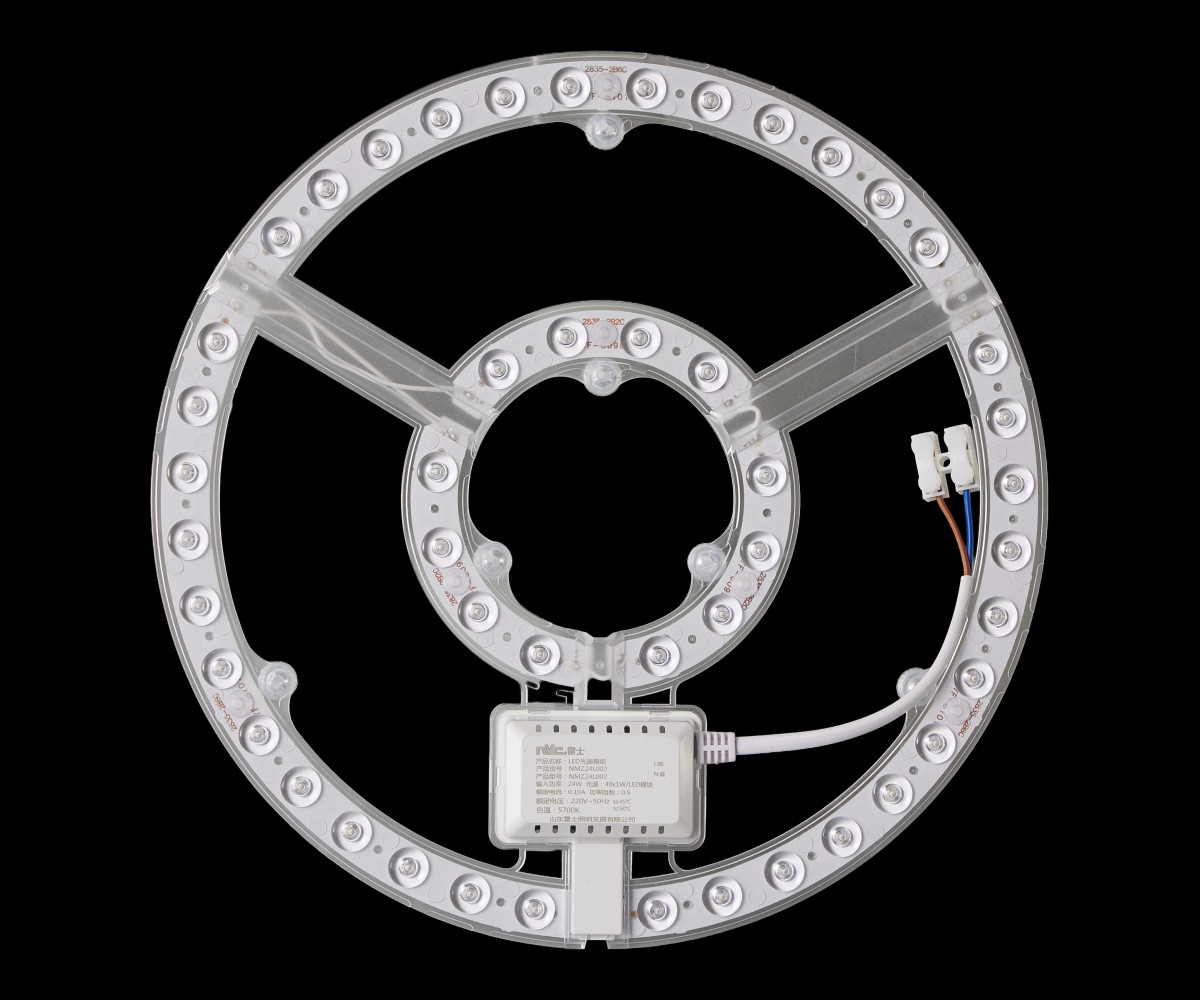

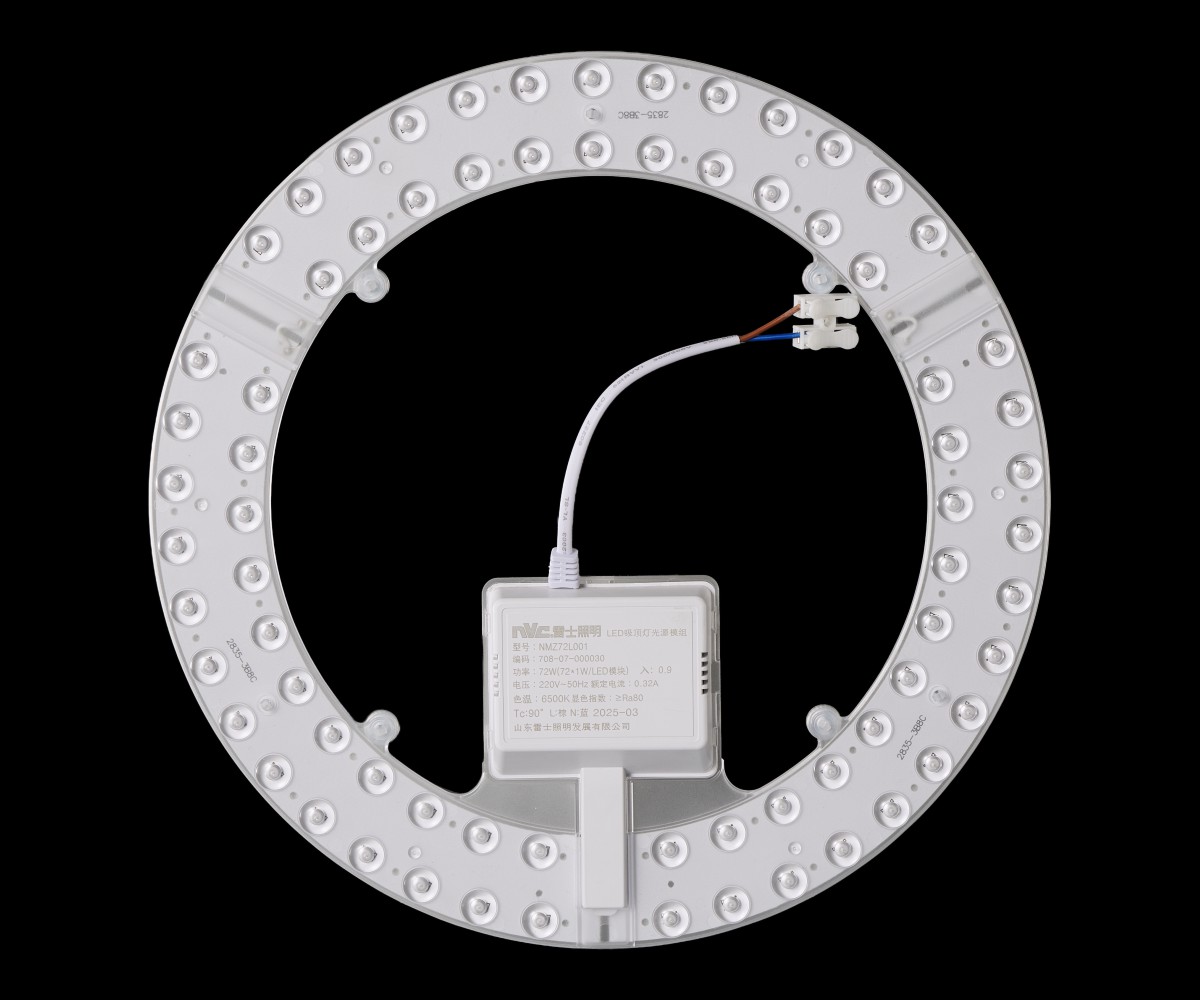

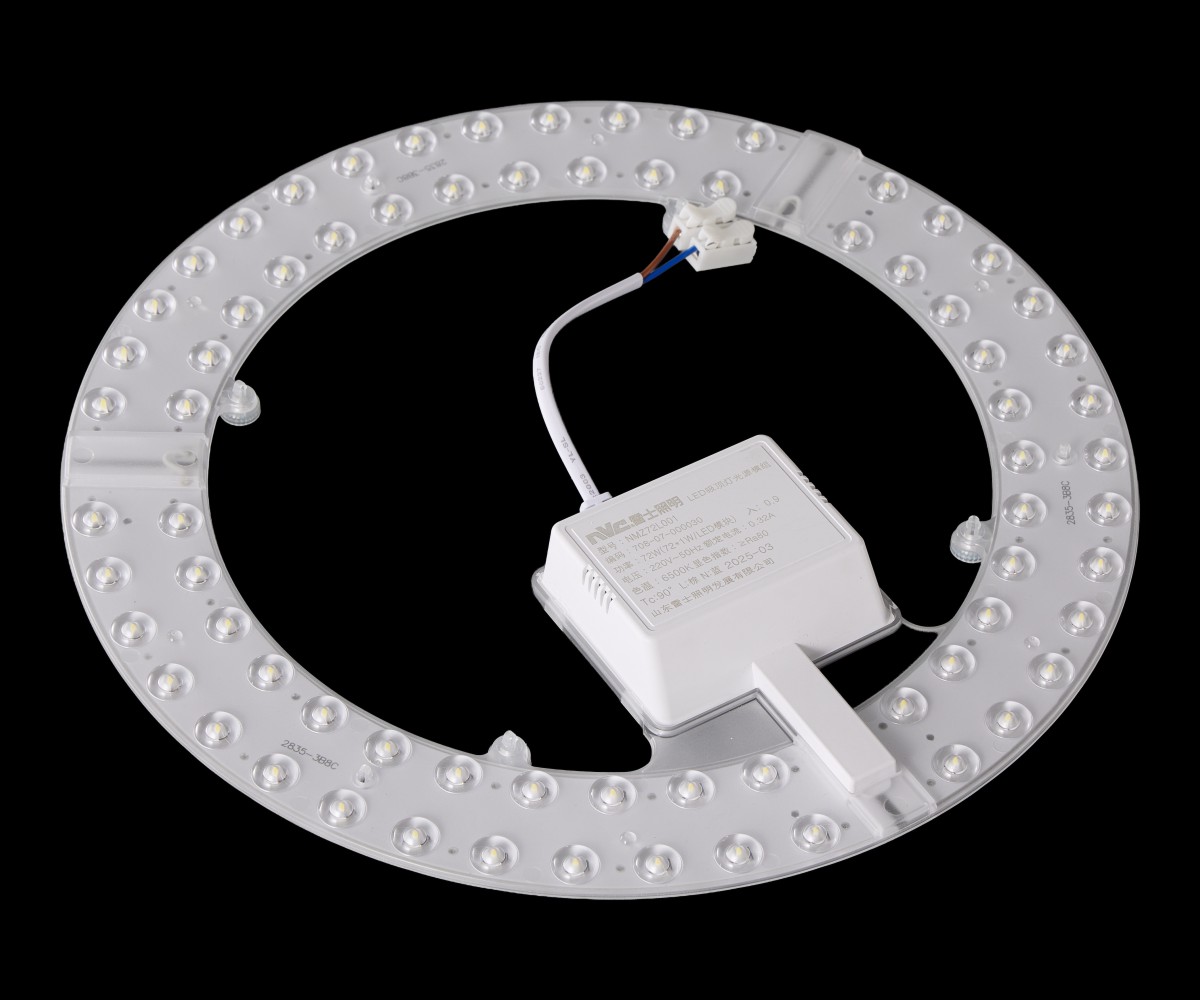

Light Engine
Application
Design Specifications
Power: 12/18/24/36/48/60/72 W
Input Voltage: AC 220-240 V
Luminous Flux: 1200/1800/2400/3600/4800/6000/7200 lm
Luminous Efficacy: 100 lm/W
Color Temperature (CCT): 3000K / 4000K / 6500K (Selectable)
Color Rendering Index (CRI): Ra ≥ 80
Beam Angle: 170 °
Driver Type: SMD
Housing Material: PC
IP Rating: IP20
Housing Dimensions:φ155*24 / 193*24 / 230*24 / 268*25 /
240*31 / 300*30 / 266*26 / 310*26 / 360*27
Certification: CCC
Performance
Flicker Percentage: < 3.2%
Power Factor: > 0.5 / 0.9
Dimensions - Wiring
Diagrams
FAQ
Downloads
Technical
Specifications
